Balon Series F Carbon Steel Ball Valves | Flanged End (ANSI Class 600)

Name: Series F Carbon Steel Flanged Ball Valves
Brand: Balon
SKU: M472
Price: 939.47 USD
Availability: InStock

Rugged Performance. American Made.

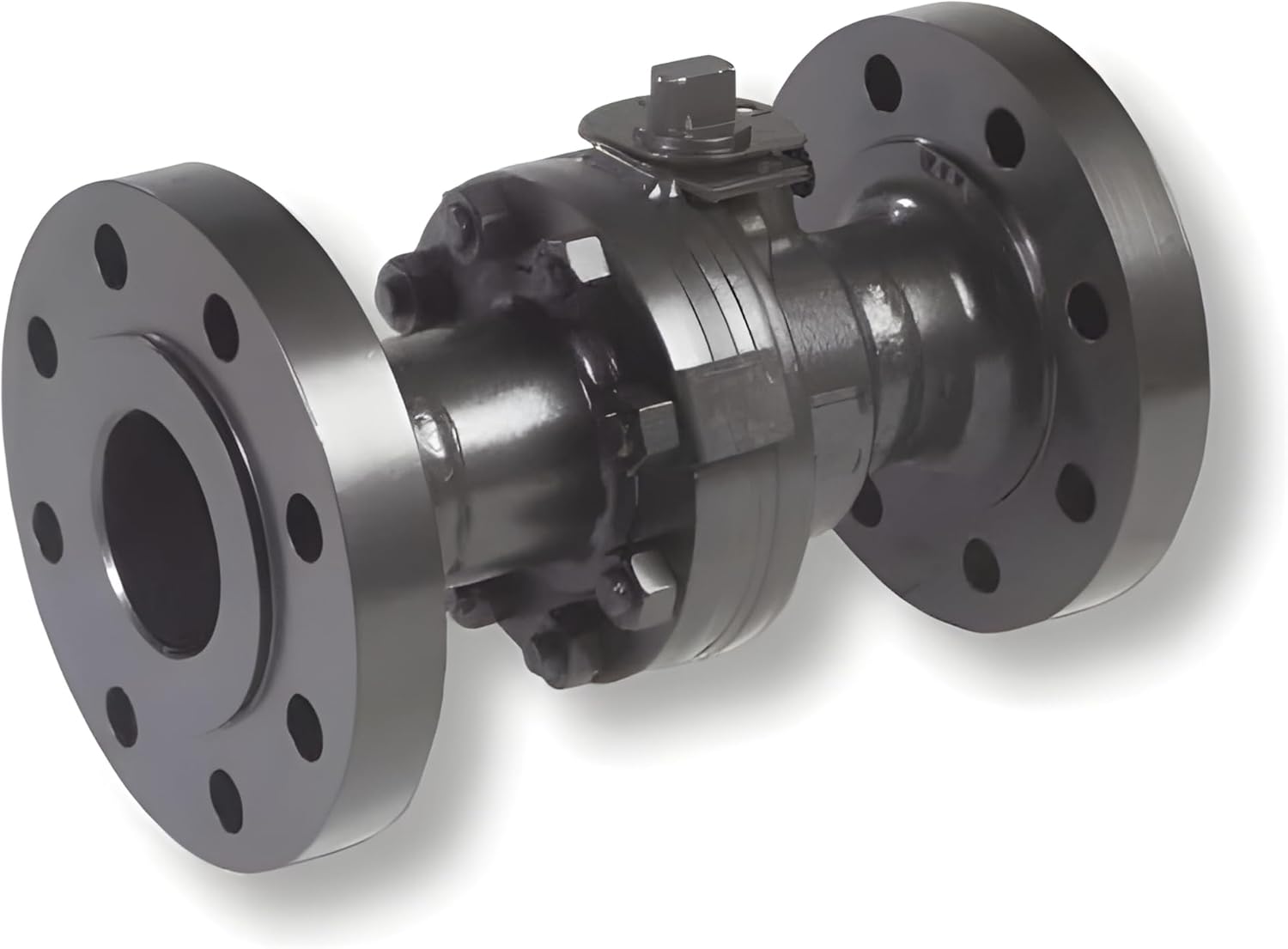

The Balon Series F Carbon Steel Ball Valve is engineered for demanding industrial applications requiring high-pressure reliability and long-term durability. Featuring a bolted body construction and a high-performance flanged end connection, this valve is built to handle working pressures up to 1480 PSI.

Whether you are operating in standard environments or require NACE compliance for sour service, the Series F provides a fire-safe, low-emission solution that doesn't compromise on safety.

Key Features

Made in USA: 100% American manufactured for superior quality control.
High Pressure Rated: ANSI Class 600 performance (1480 PSI WP).
Certified Safety: Certified Fire Safe and Low Emission for environmental compliance.
Maintenance-Friendly: Bolted body construction allows for easier field service.
Standard Security: Includes a rugged locking device to prevent unauthorized operation.
Extreme Versatility: Available in Low-Temp service configurations down to -50°F.

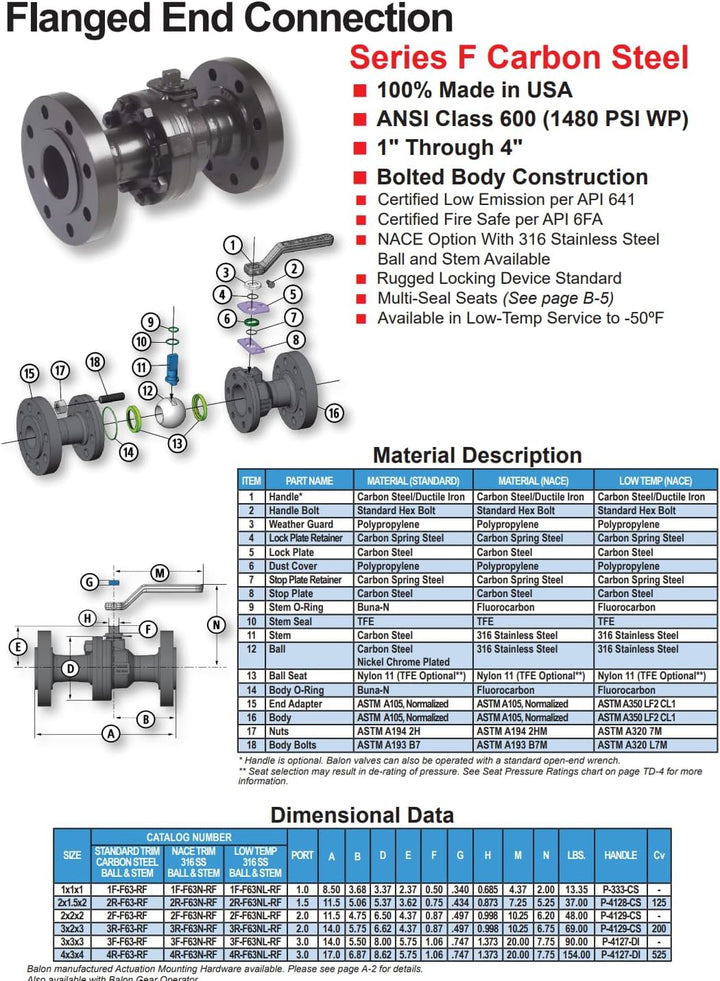

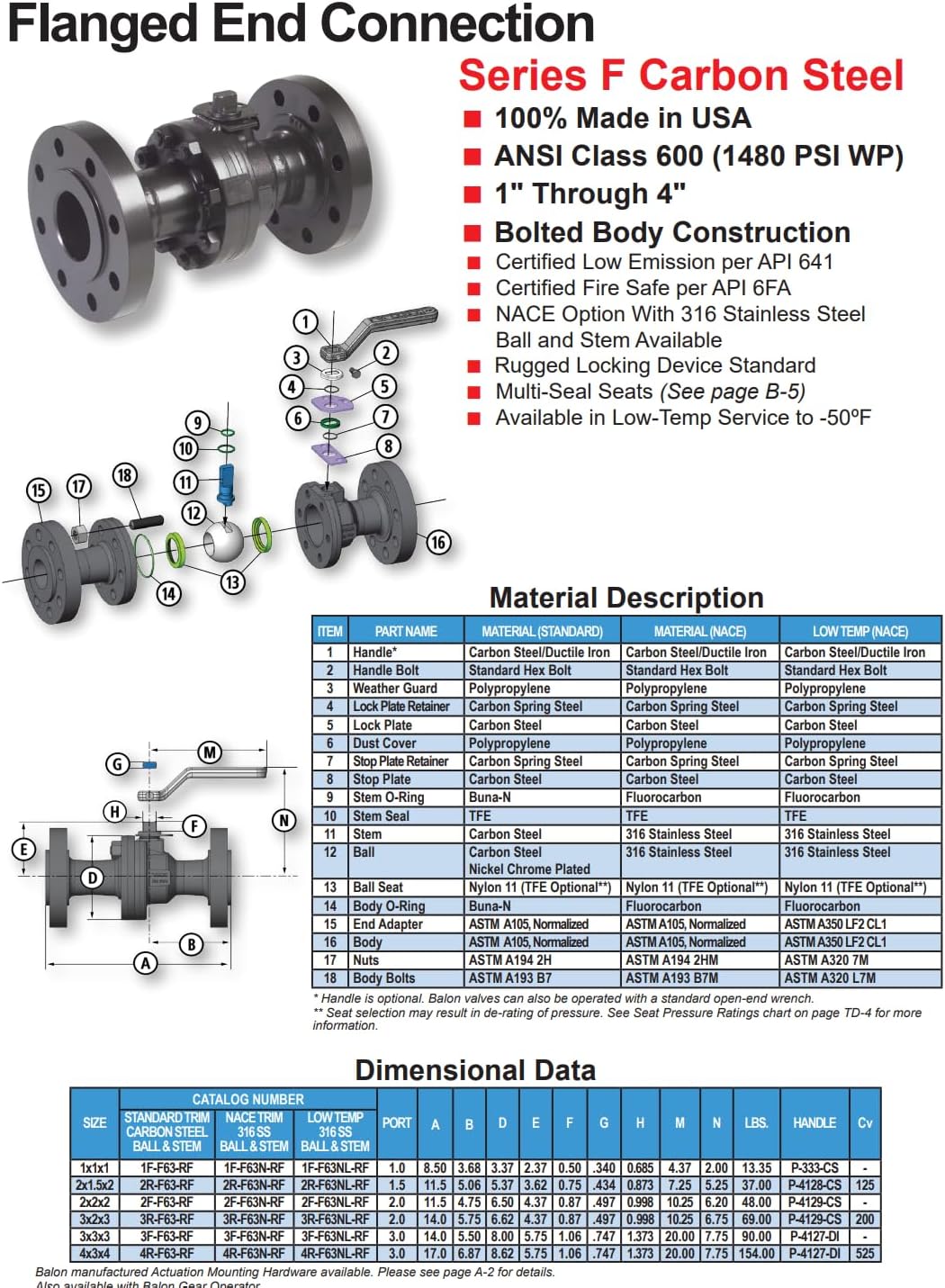

Specifications

Attribute	Detail
Series	Series F
Material	Carbon Steel (Standard, NACE, or Low-Temp)
Connection Type	Flanged End (RF)
Pressure Class	ANSI Class 600
Max Working Pressure	1480 PSI
Port Sizes	1" through 4"
Trim Options	Standard (CS Ball/Stem) or NACE (316 SS Ball/Stem)

Material Construction

Body: ASTM A105 Normalized (Standard) / ASTM A350 LF2 CL1 (Low-Temp)
Ball: Carbon Steel Nickel Chrome Plated or 316 Stainless Steel
Seats: Multi-Seal Nylon 11 (TFE Optional)
Stem Seals: Buna-N or Fluorocarbon O-Rings with TFE Seals

Ordering Guide (Catalog Numbers)

Size	Standard Trim	NACE Trim (316 SS)	Weight (LBS)
1x1x1	1F-F63-RF	1F-F63N-RF	13.35
2x1.5x2	2R-F63-RF	2R-F63N-RF	37.00
2x2x2	2F-F63-RF	2F-F63N-RF	48.00
3x2x3	3R-F63-RF	3R-F63N-RF	69.00
3x3x3	3F-F63-RF	3F-F63N-RF	90.00
4x3x4	4R-F63-RF	4R-F63N-RF	154.00
