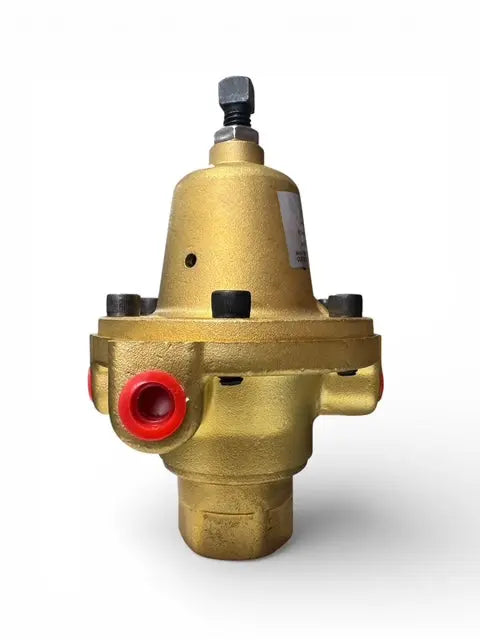

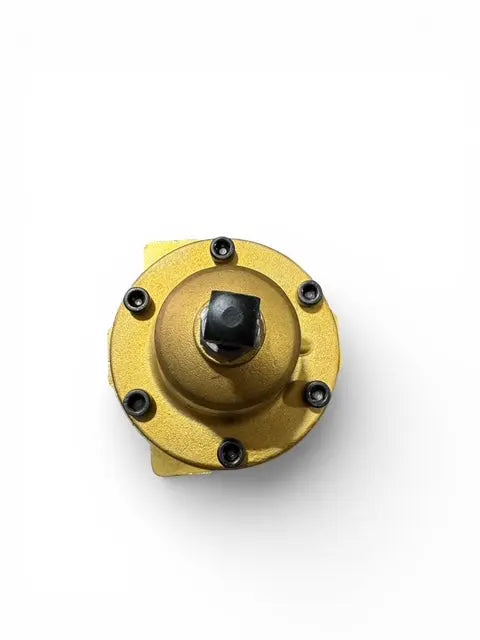

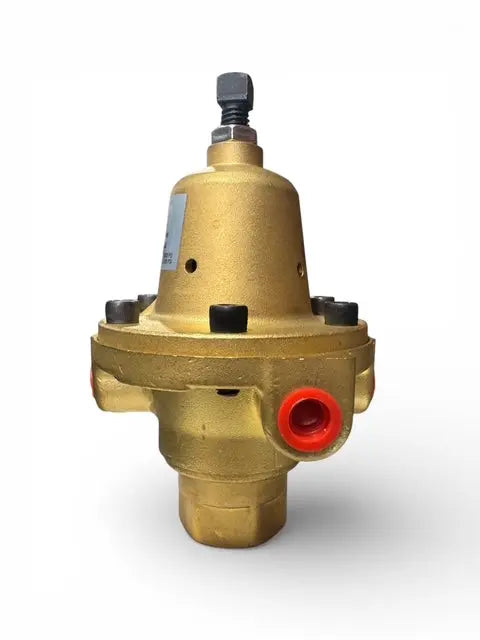

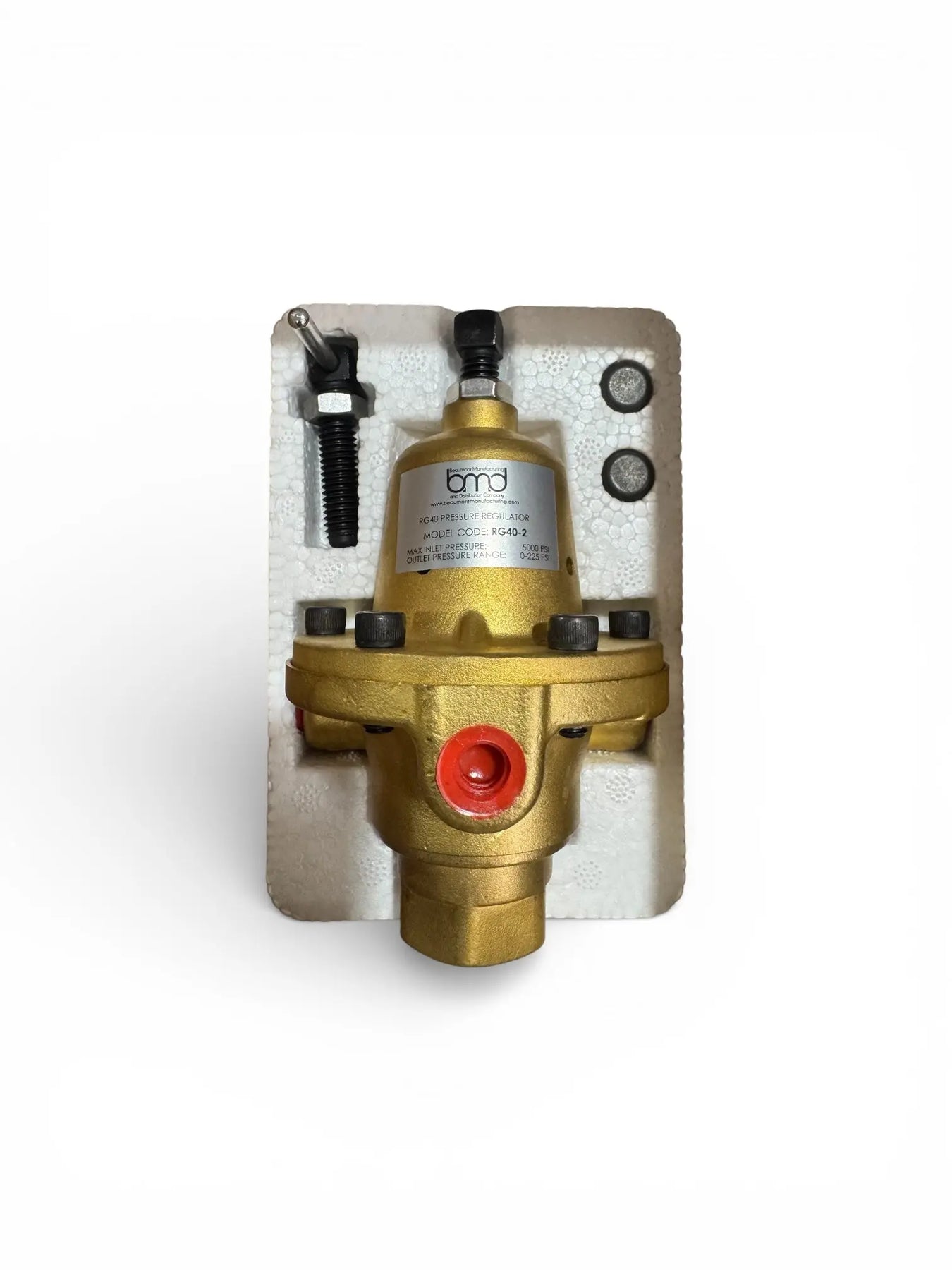

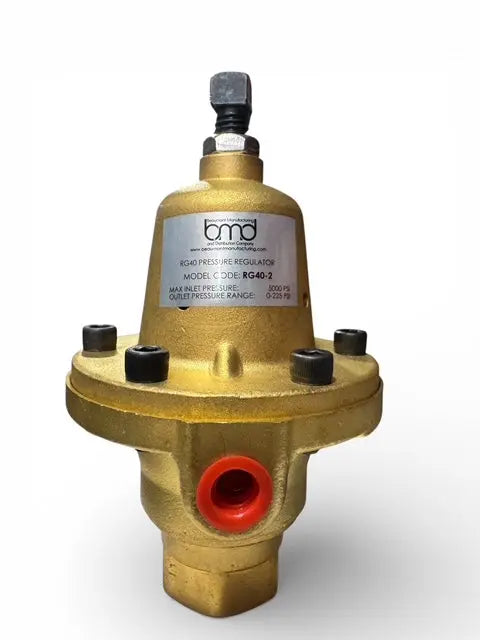

The BMD RG40-2 ( Meco Style Regulator )is a compact, high-performance regulator engineered to reduce high-pressure inputs down to stable, precise working pressures. Built for durability and reliability in demanding industrial environments, this spring-operated regulator features a rugged brass body and housing capable of handling inlet pressures up to 5,000 PSI.
Designed for versatility, the RG40-2 is equipped with a stainless steel diaphragm and a nylon disk, ensuring consistent performance even during high-pressure drops. It is the ideal solution for operating chemical injection pumps, valve actuators, and pneumatic controllers.
With its 1/4" NPT multi-port configuration (1 inlet, 3 outlets), this regulator allows for flexible installation and the ability to manage multiple loads simultaneously.
Key Features:
-
Precision Control: Delivers a stable output pressure range of 0 – 225 PSI.
-
High-Pressure Rating: Safely handles inlet pressures up to 5,000 PSI.
-
Durable Construction: Features a heavy-duty brass body, stainless steel diaphragm, and nylon disk for long service life.
-
Versatile Connectivity: Equipped with one 1/4" NPT inlet and three 1/4" NPT outlets for versatile piping configurations.
-
Compact Design: Ideal for installations where space is limited without sacrificing performance.
Technical Specifications:
| Feature |
Specification |
| Model |
RG40-2 |
| Body Material |
Brass |
| Diaphragm Material |
Stainless Steel |
| Disk Material |
Nylon |
| Inlet Connection |
1/4" NPT (1 Port) |
| Outlet Connections |
1/4" NPT (3 Ports) |
| Max Inlet Pressure |
5,000 PSI |
| Outlet Pressure Range |
0 – 225 PSI |
| Temperature Range |
-20°F to 180°F (-29°C to 82°C) |
Common Applications:
Comparable To / Replaces:
-
Fisher 1301
-
WellMark W1301
-
BelGas P390
-
Mallard 5660
