Apache & Templar Series Butterfly Valves – Ductile Iron, 200 PSI

Upgrade your fluid control system with our professional-grade Lever Operated Butterfly Valves. Built for durability and precision, these valves feature a rugged Ductile Iron body and a high-performance Nickel-Plated DI Disc, ensuring reliable service in industrial, commercial, and agricultural applications.

Premium Construction & Precision Control

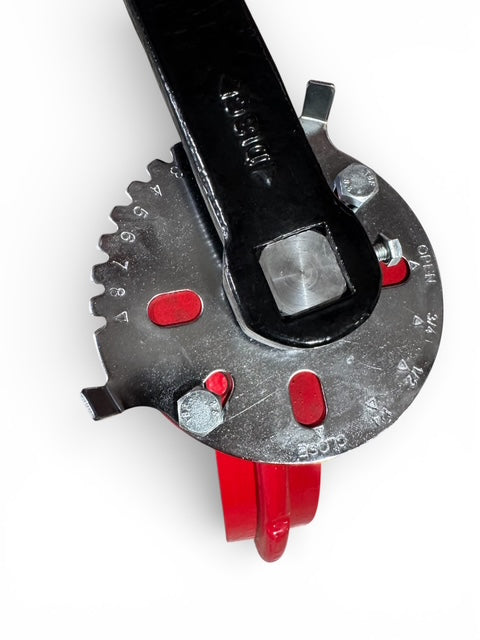

Each valve is equipped with a 10-position locking handle, allowing for fine-tuned flow regulation. The Buna-N (NBR) seats provide a bubble-tight seal and excellent resistance to oils, water, and many chemicals.

Key Specifications:

Pressure Rating: 200 PSI
Body Material: Durable Ductile Iron (Short Neck Design)
Disc: Nickel Plated Ductile Iron (Corrosion Resistant)
Seat Material: Buna-N (Resilient Seat)
Stem: Square Stem design for secure torque transmission
Standards & Compliance:
- Face-to-Face: ISO 5752
- Mounting Pad: ISO 5211 (Ready for Actuation)
- Flange Compatibility: ANSI 150

Size & Brand Availability

Please note the brand variation based on size selection:

Size	Brand	Stem Size	Notch Count
2"	Apache	5/8"	4 Notches
3"	Apache	5/8"	4 Notches
4"	Apache	5/8"	8 Notches
5"	Templar	5/8"	8 Notches
6"	Apache	5/8"	8 Notches
8"	Apache	7/8"	8 Notches
10"	Apache	7/8"	12 Notches
12"	Apache	1 1/8"	12 Notches

Why Choose These Valves?

Versatile Mounting: The ISO 5211 mounting pad makes it easy to convert these from manual lever operation to automated pneumatic or electric actuators in the future.
Rugged Reliability: The Ductile Iron construction offers higher tensile strength and impact resistance compared to standard cast iron.
Bubble-Tight Shutoff: The resilient Buna seat ensures zero leakage at full pressure.

Pro Tip: Ensure your flange gaskets are compatible with Buna-N material for the best seal longevity.
